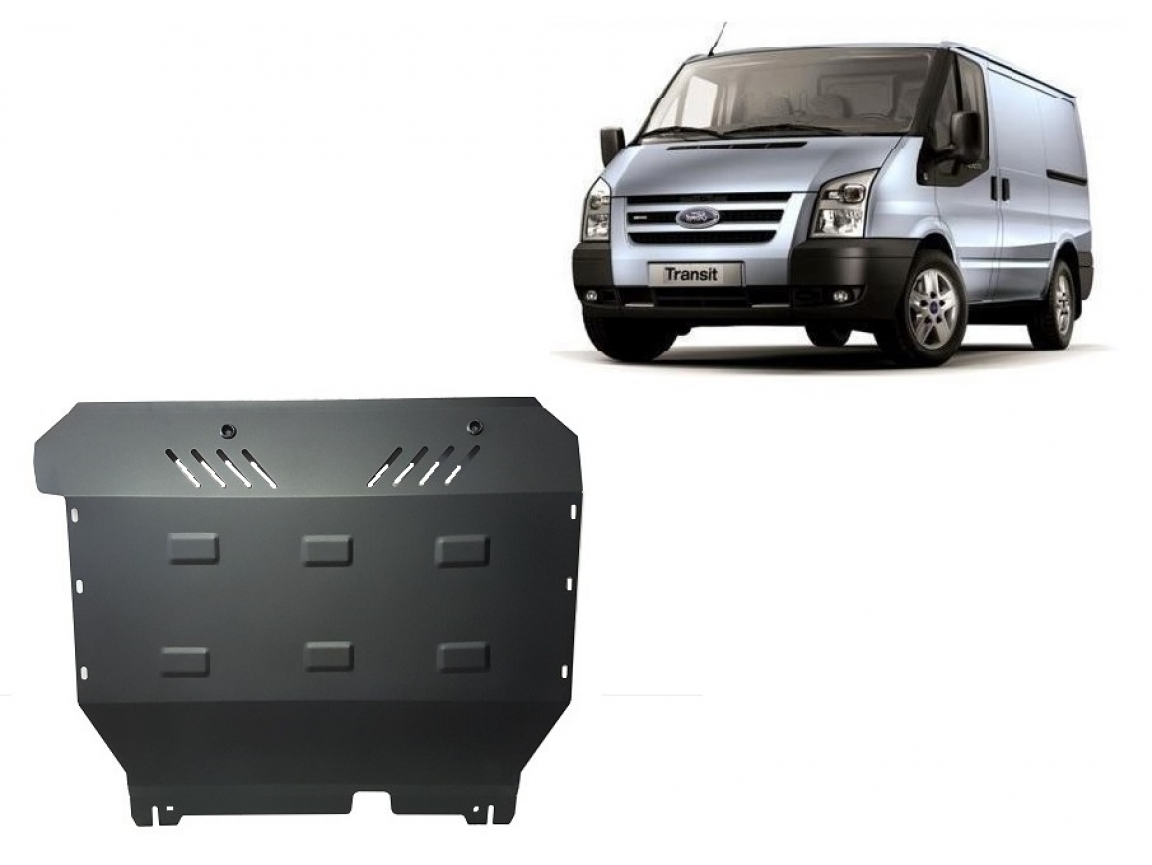

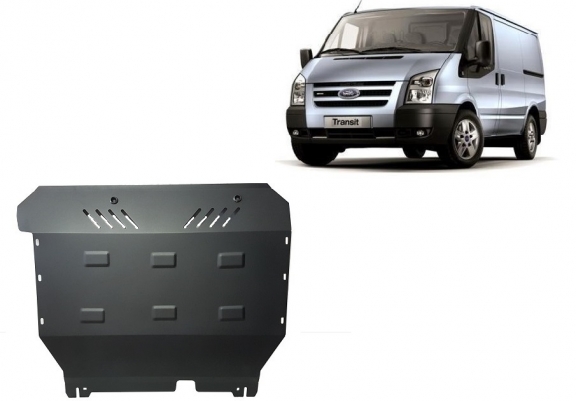

Steel sump guard for Ford Transit - FWD
Product code: 08.059
| Brand | Ford |
| Model | Ford Transit |
| Year | 2007 - 2013 |
| Material | Steel |
| Width | 2 mm |
| Protects | engine, gearbox |
| Engine | all |
| Weight | 17 kg |
| EAN Code: | 5941986202963 |
| Has an opening for the oil sump: No | |
| Availability | In Stock |
| Manufacturer | Scut Protection S.R.L |
| Comment | traction |
| No additional approval is required | |
Technical specifications: |
|
The metal skid plate is new and custom-designed for Ford Transit - FWD, compatible with all versions manufactured between 2007 and 2013. It protects the underside of the vehicle and sensitive components against impacts, stones, mud, dirt and road irregularities. The skid plate protects the following components: engine, gearbox. The skid plate is made from steel sheet with a thickness of 2 mm. Includes screws, spacers and all accessories required for installation. All skid plates are powder coated for corrosion protection, providing greater resistance and durability. The skid plates feature welded reinforcements to improve resistance against external impacts. |
Advantages: |
| Resists impacts caused by stones, potholes and road irregularities. |
| Protects the underside of the vehicle against dust, mud, dirt and other external elements. |
| More resistant and durable than plastic or fibreglass protection. |
| If you are not satisfied with the product, you can return it within 60 days. |
Warranty: |
| Our company offers a 24-month warranty on its products. |
Delivery conditions |
| Our products are shipped via GLS, FEDEX, DPD or ParcelForce. |
| Shipping costs are calculated and added to your cart before purchase. |
| The estimated delivery time is 4 to 7 working days. |
Installation: |

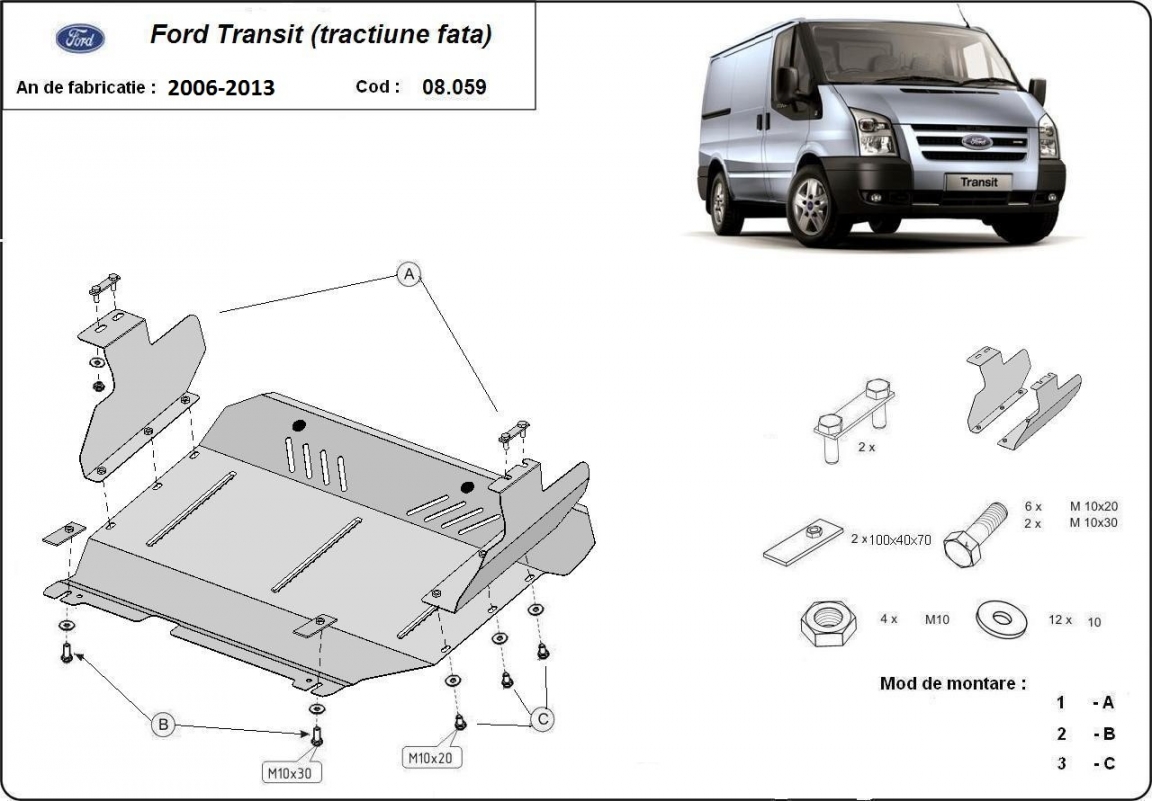

| We provide an installation guide with the skid plate showing the position and installation order of the included accessories. |
| The skid plate is installed using the vehicle’s original mounting points, so installation is straightforward and can be carried out by you or at any workshop. |
| No drilling or major modifications to the vehicle structure are required for installation. |
| No additional approval is required for installation. |
|
|
Customer feedback
Steel sump guard for Ford Transit - FWD
La verdad muy buen producto, muchas gracias
Steel sump guard for Ford Transit - FWD
Shipping: the packaging was not sufficient to protect the edges of the product from getting scraped. So I had to repaint the edges. Fitting: 1. the is insufficient fitting information. There should be a step by step guide with diagrams or photos. Instead it is guess work and trial and error. 2. The fabricated 'U' bolts that hold the sides of the guard to the underside of the engine bearers do not fit through the holes that exist in the engine bearers. My Mk 7 SWB FWD 2.2 transit sept 2012, has different sized holes on each side. On the UK near side (front right) the circular hole much smaller than on the other side. I had to grind down the ends and backs both U bolts to get them to pass through the holes. On the right side this took a considerable amount of work, before it would go through the hole. Clearly the design needs updating. 3. With no assembly order it became a fight to get the main sump plate holes to line up with the captive nuts in the sides and the slotted fixings at the rear. It was only after several attempts it became clear that the rear fixings should be mounted first!!! Thankyou.. What should have taken half an hour took over an hour. At least now the product is fitted, it is doing its job. And well !
Steel sump guard for Ford Transit - FWD
Finally could sort out what Fords seems to be acceptable on the Transit MK7 and close up the underside of the fully exposed engine bay. Sumpguard fitted good but holes on the LH frame needed a little bit fettling to accept the bracket. As others said already, packaging not quite as good as it could be but all considered good value for money.
Steel sump guard for Ford Transit - FWD
Good quality Produkt, quick delivery und no problems fitting it to my transit. The installation instructions could be better but if you can solve a puzzle for 4-6 year olds you will manage to install this sump guard. Packaging was also not sufficient and the delivery arrived scratched and beat up but after all it’s a sump guard .... Would recommend this guard
Steel sump guard for Ford Transit - FWD
Hält, was es verspricht. Montage hab ich in einer Werkstatt machen lassen wegen des Gewichts. Die haben einen Motorheber benutzt, um das massive Teil runterzuhieven und wohl einige Schraublöcher nachgebohrt. Das Auto - ein Ford Transit - ist ein Stückchen tiefer gekommen. Hab das Teil seit gut drei Monaten in Marokko drunter und war öfters froh, dass ich es drunter hatte. Versand war schnell! Preis angemessen. Empfehlung für alle, die auf holprigen und steinigen Wegen fahren wollen.
Steel sump guard for Ford Transit - FWD
Vielen Dank. Das Produkt überzeugt in der Verarbeitung und Montagefreundlichkeit.
Steel sump guard for Ford Transit - FWD
Einziger Kritikpunkt man könnte eine ausführliche Montageanleitung beifügen. Dann würde man auch sehen das man den Querträger abbauen muss um die Verschraubungen einzuführen.
Steel sump guard for Ford Transit - FWD
Bestellung und Versand war in Ordung. Die Qalität ist gut, Passgenauigkeit auch. Die Konstruktion des Schutzes ist durchdacht und stabil. Nur links ist beim Einfädeln der Halterung ist Nacharbeit notwendig gewesen, weil im Rahmen kein Langloch wie rechts, sondern ein Rundloch ist. ( Ford Transit 2.2 Bj. 2013 ) Gesamteindruck: 1-
Steel sump guard for Ford Transit - FWD
Livraison ok RAS Produit, manque les 2 pattes de fixations prévues dans la commande mais absentes dans le colis. Donc déception, puisqu'il faut improviser
Steel sump guard for Ford Transit - FWD
Je me suis trompé de modèle, une reprise et un nouvel achat plus tard, tout se monte avec un peu d'intuition quand même. Un bon produit solide et un marchant très compétent. Merci pour cette transaction, je reviendra vers vous pour une autre voiture d'ici peu.
