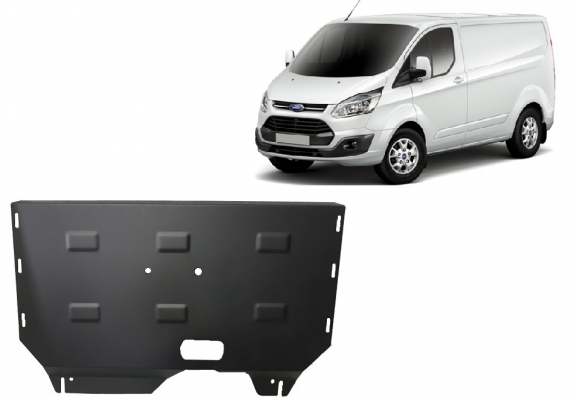

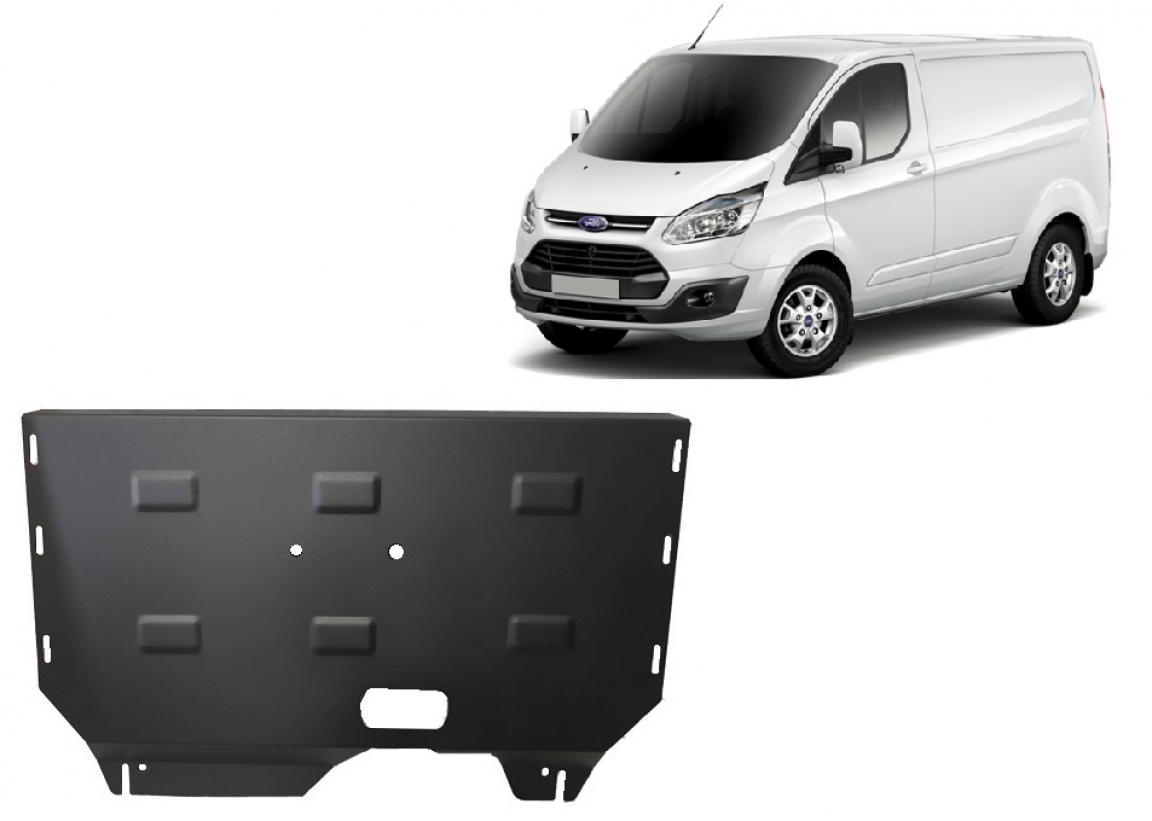

Steel sump guard for the protection of the engine and the gearbox for Ford Transit Custom
Product code: 08.061
| Brand | Ford |
| Model | Ford Transit Custom |
| Year | 2013 - 2020 |
| Material | Steel |
| Width | 2 mm |
| Protects | engine, gearbox |
| Engine | 2.2 TD |
| Weight | 14 kg |
| EAN Code: | 5941986203007 |
| Has an opening for the oil sump: No | |
| Availability | In Stock |
| Manufacturer | Scut Protection S.R.L |
| No additional approval is required | |
Recommended product
Technical specifications: |
|
The metal skid plate is new and custom-designed for Ford Transit Custom, compatible with the following engine versions: 2.2 TD. Vehicle manufactured between 2013 and 2020. It protects the underside of the vehicle and sensitive components against impacts, stones, mud, dirt and road irregularities. The skid plate protects the following components: engine, gearbox. The skid plate is made from steel sheet with a thickness of 2 mm. Includes screws, spacers and all accessories required for installation. All skid plates are powder coated for corrosion protection, providing greater resistance and durability. The skid plates feature welded reinforcements to improve resistance against external impacts. |
Advantages: |
| Resists impacts caused by stones, potholes and road irregularities. |
| Protects the underside of the vehicle against dust, mud, dirt and other external elements. |
| More resistant and durable than plastic or fibreglass protection. |
| If you are not satisfied with the product, you can return it within 60 days. |
Warranty: |
| Our company offers a 24-month warranty on its products. |
Delivery conditions |
| Our products are shipped via GLS, FEDEX, DPD or ParcelForce. |
| Shipping costs are calculated and added to your cart before purchase. |
| The estimated delivery time is 4 to 7 working days. |
Installation: |

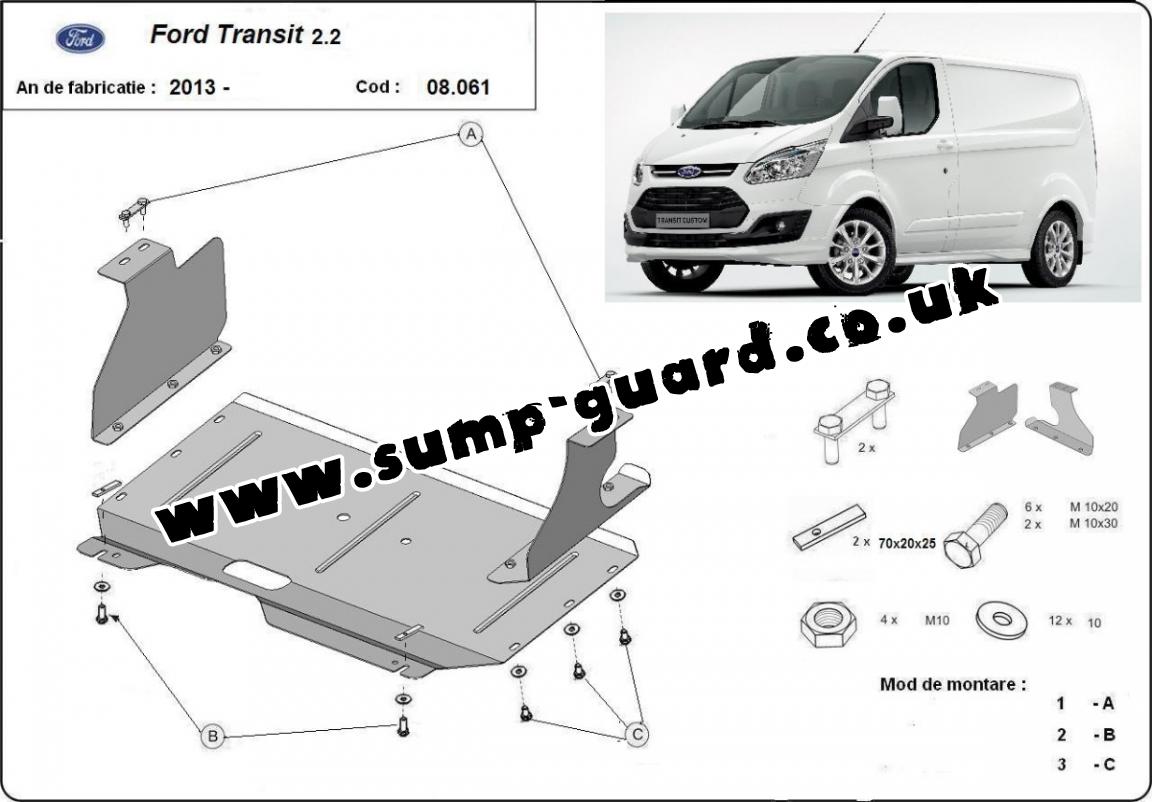

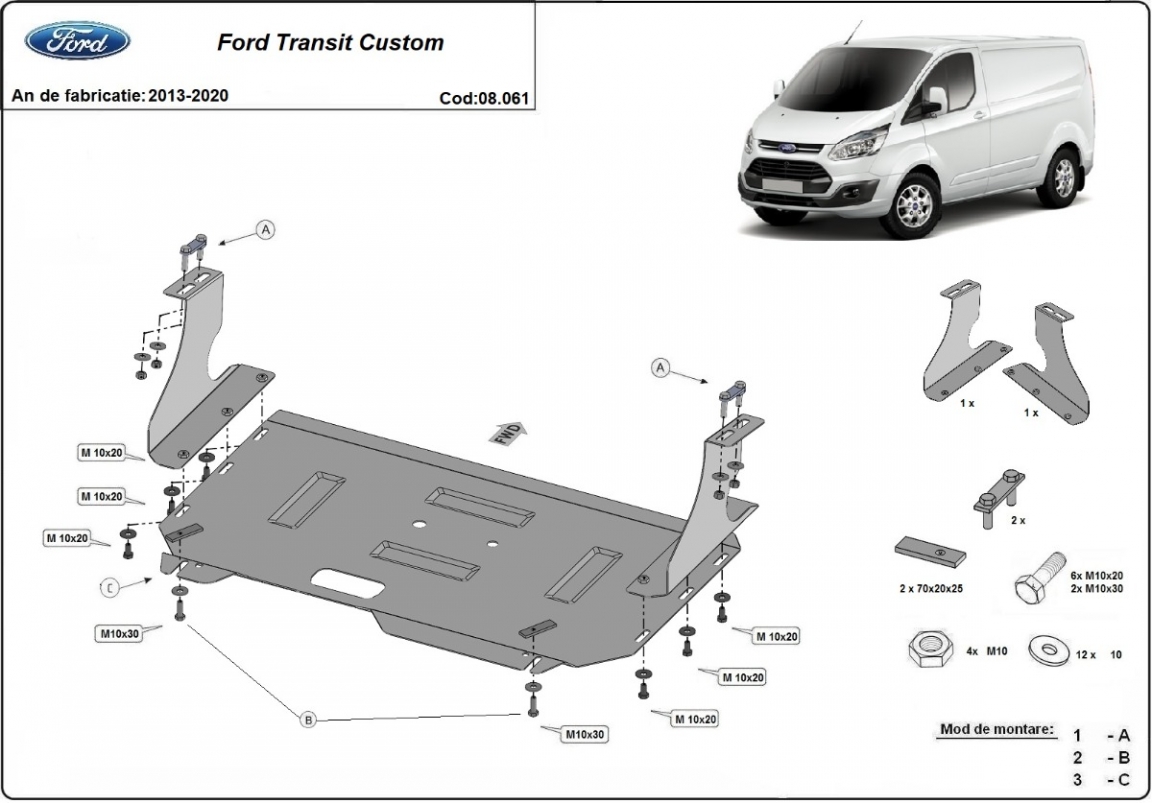

| We provide an installation guide with the skid plate showing the position and installation order of the included accessories. |

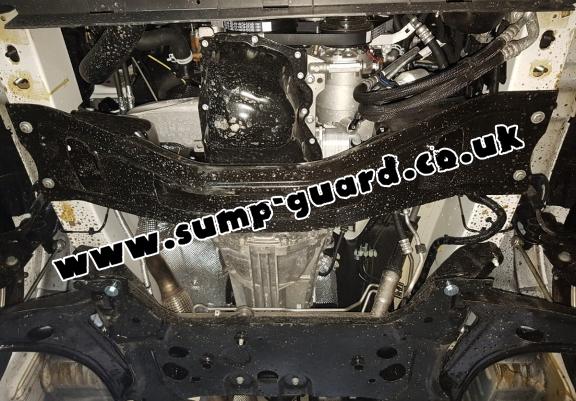

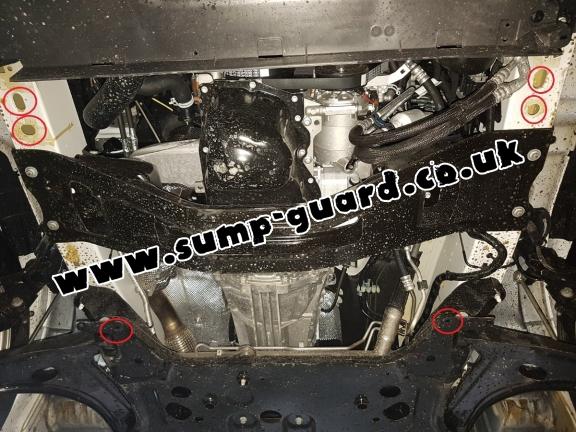

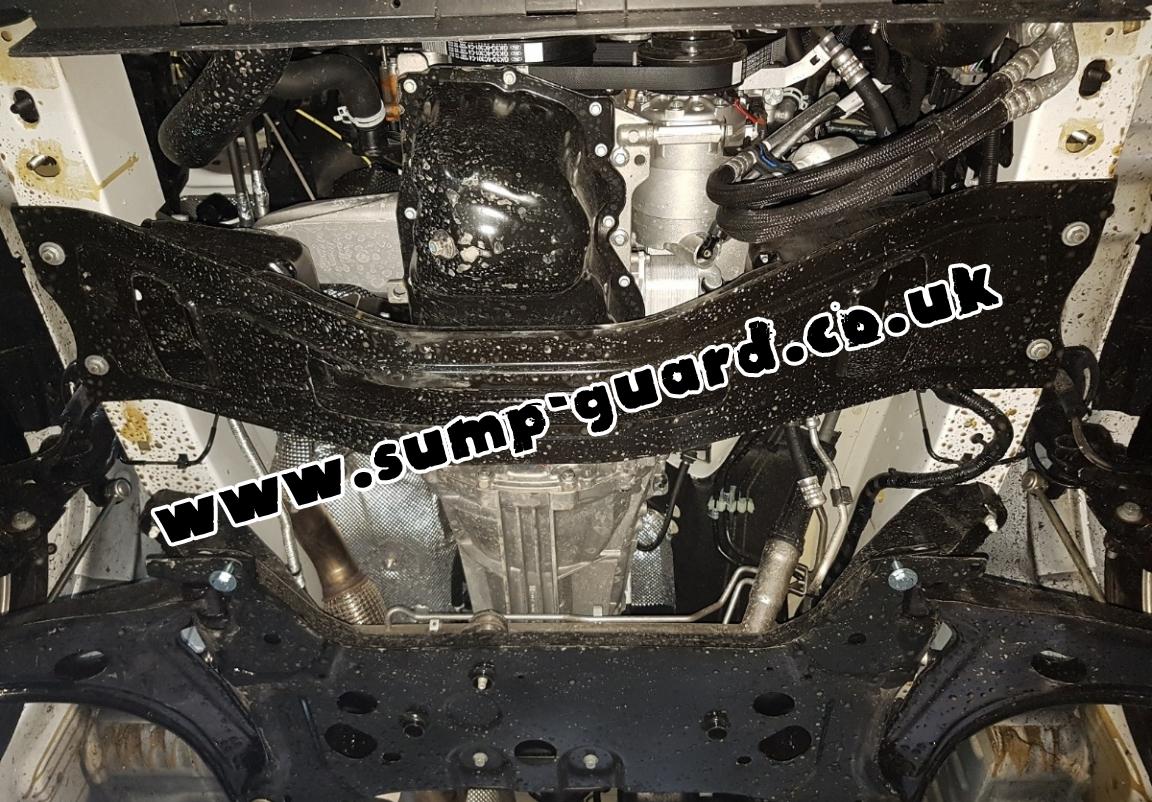

| The skid plate is installed using the vehicle’s original mounting points, so installation is straightforward and can be carried out by you or at any workshop. |
| No drilling or major modifications to the vehicle structure are required for installation. |
| No additional approval is required for installation. |
|
|
Customer feedback
Steel sump guard for the protection of the engine and the gearbox for Ford Transit Custom
Muy bien producto y mejor todavía fue el trato recibido a mis preguntas y la información recibida.Muchas gracias!. Recomendable totalmente.
Steel sump guard for the protection of the engine and the gearbox for Ford Transit Custom
this is the second one that I have fitted, again an excellent piece of kit, but the assembly instructions from an engineering point of view are deplorable
Steel sump guard for the protection of the engine and the gearbox for Ford Transit Custom
Preis,Leistung passt. Gute Qualität. Danke
Steel sump guard for the protection of the engine and the gearbox for Ford Transit Custom
Tolle Sache ... Außer die Montage Anleitung hat mich etwas verunsichert ...aber sonst Daumen hoch .
Steel sump guard for the protection of the engine and the gearbox for Ford Transit Custom
Guten Tag, Leider hat der von Ihnen gelieferte Unterfahrschutz nicht gepasst (auf Ford Transit Custom 2017 / Euro 6) Die Ablass-Schraube der Ölwanne machte Kontakt. Dazu musste extra ein Ausschnitt vorgenommen werden. Zudem fehlten die von Ihnen versprochenen zusätzlichen Unterlagsscheiben im Lieferumfang, um die Distanz weiter zu vergrössern. Diese mussten dann gesondert ausgemessen und organisiert werden. Zusammengefasst: Es war einiges an Mehraufwand nötig als vorangeschlagt. Eine Rücksendung aus der Schweiz wäre viel zu teuer gekommen. Mich ärgert dies, weil ich sie explizit angefragt habe und auf den möglichen Unterschied vom Motorunterbau Euro 5 / Euro 6 hingewiesen habe.
Steel sump guard for the protection of the engine and the gearbox for Ford Transit Custom
Très très bonne qualité du produit et de sa fabrication. Tout la boulonnerie est fournie. Seul bémol, la notice de pose qui n'est pas très claire pour ce qui est du sens de montage et apparemment, obligation de dépose pour effectuer une vidange moteur ! Sinon, super mon Transit Custom est ravi.
