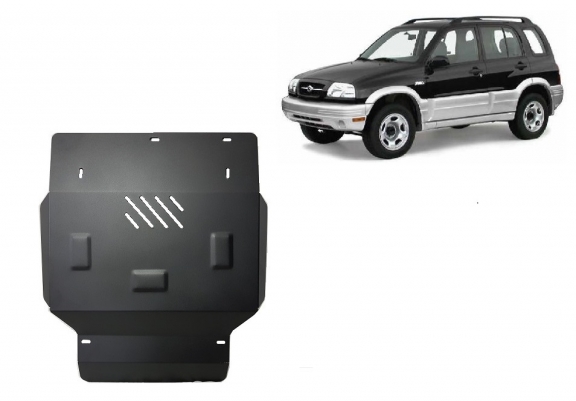

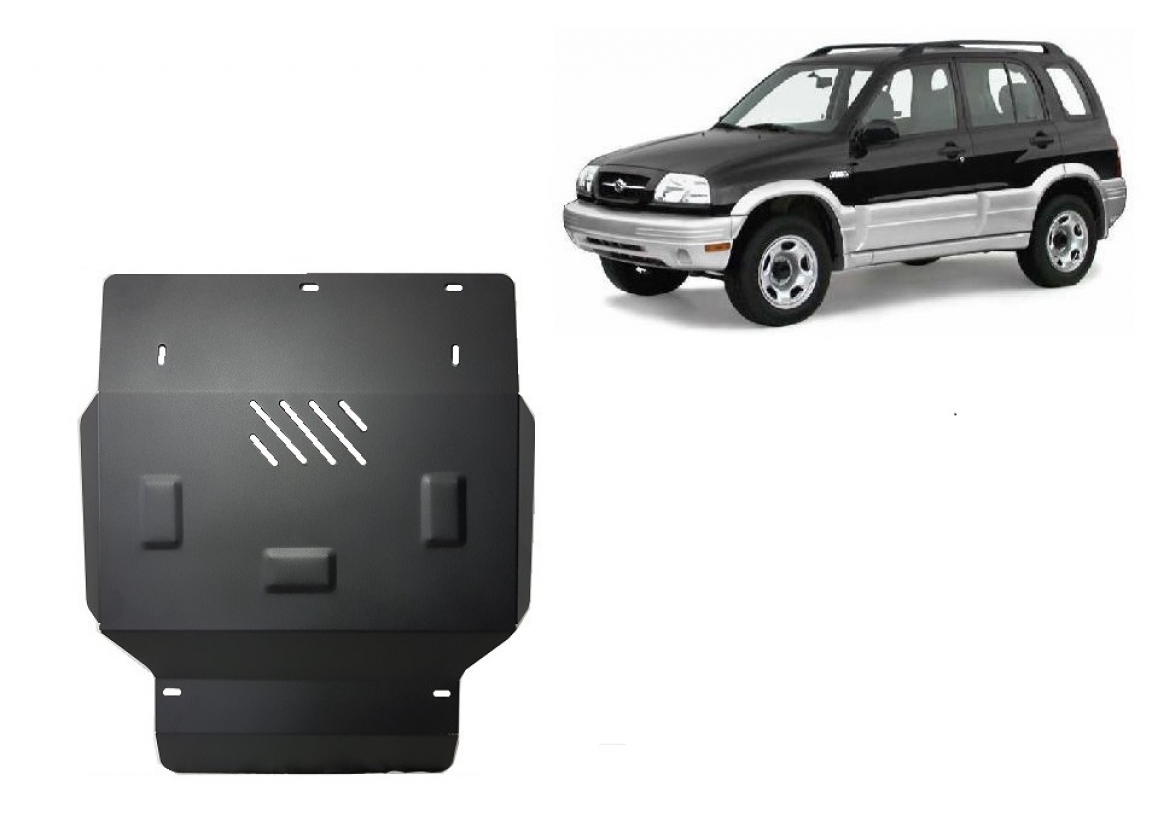

Steel sump guard for Suzuki Grand Vitara
Product code: 25.230
| Brand | Suzuki |
| Model | Suzuki Grand Vitara |
| Year | 1999 - 2005 |
| Material | Steel |
| Width | 3 mm |
| Protects | engine |
| Engine | all |
| Weight | 9 kg |
| EAN Code: | 5941986208279 |
| Has an opening for the oil sump: No | |
| Availability | In Stock |
| Manufacturer | Scut Protection S.R.L |
| No additional approval is required | |
Recommended product
Technical specifications: |
|
The metal skid plate is new and custom-designed for Suzuki Grand Vitara, compatible with all versions manufactured between 1999 and 2005. It protects the underside of the vehicle and sensitive components against impacts, stones, mud, dirt and road irregularities. The skid plate protects the following components: engine. The skid plate is made from steel sheet with a thickness of 3 mm. Includes screws, spacers and all accessories required for installation. All skid plates are powder coated for corrosion protection, providing greater resistance and durability. The skid plates feature welded reinforcements to improve resistance against external impacts. |
Advantages: |
| Resists impacts caused by stones, potholes and road irregularities. |
| Protects the underside of the vehicle against dust, mud, dirt and other external elements. |
| More resistant and durable than plastic or fibreglass protection. |
| If you are not satisfied with the product, you can return it within 60 days. |
Warranty: |
| Our company offers a 24-month warranty on its products. |
Delivery conditions |
| Our products are shipped via GLS, FEDEX, DPD or ParcelForce. |
| Shipping costs are calculated and added to your cart before purchase. |
| The estimated delivery time is 4 to 7 working days. |
Installation: |

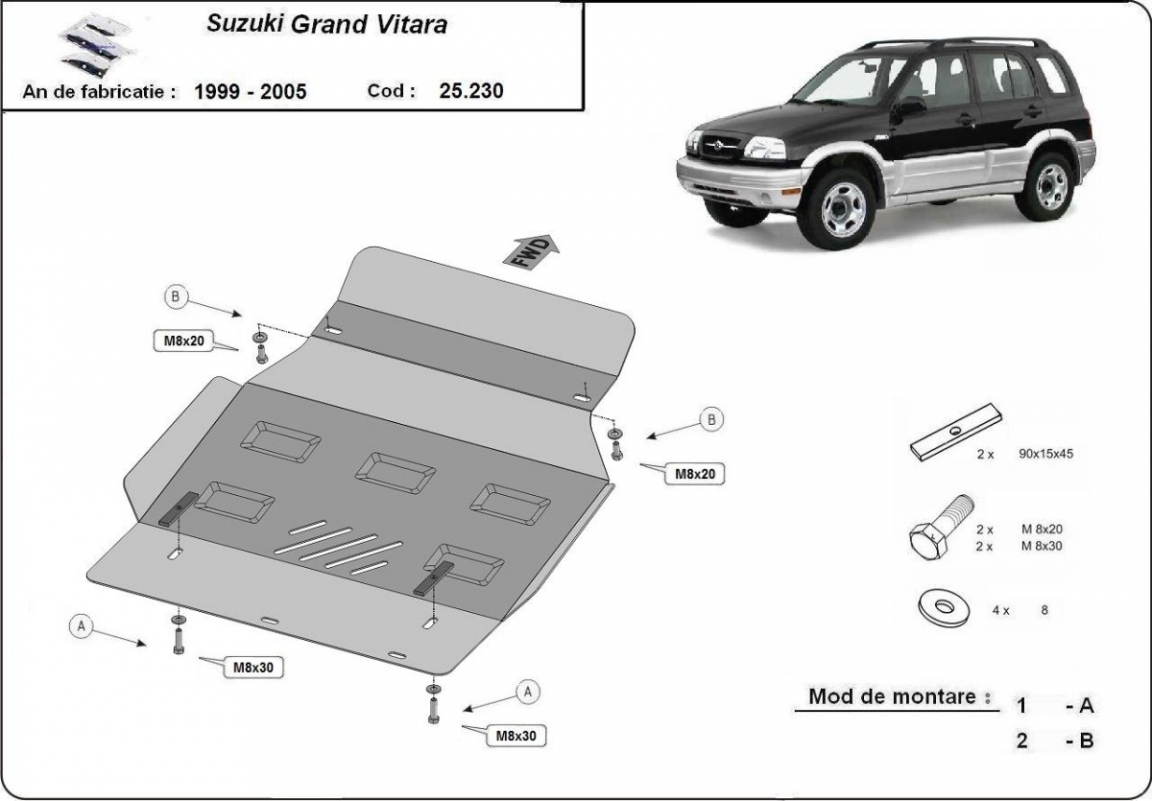

| We provide an installation guide with the skid plate showing the position and installation order of the included accessories. |

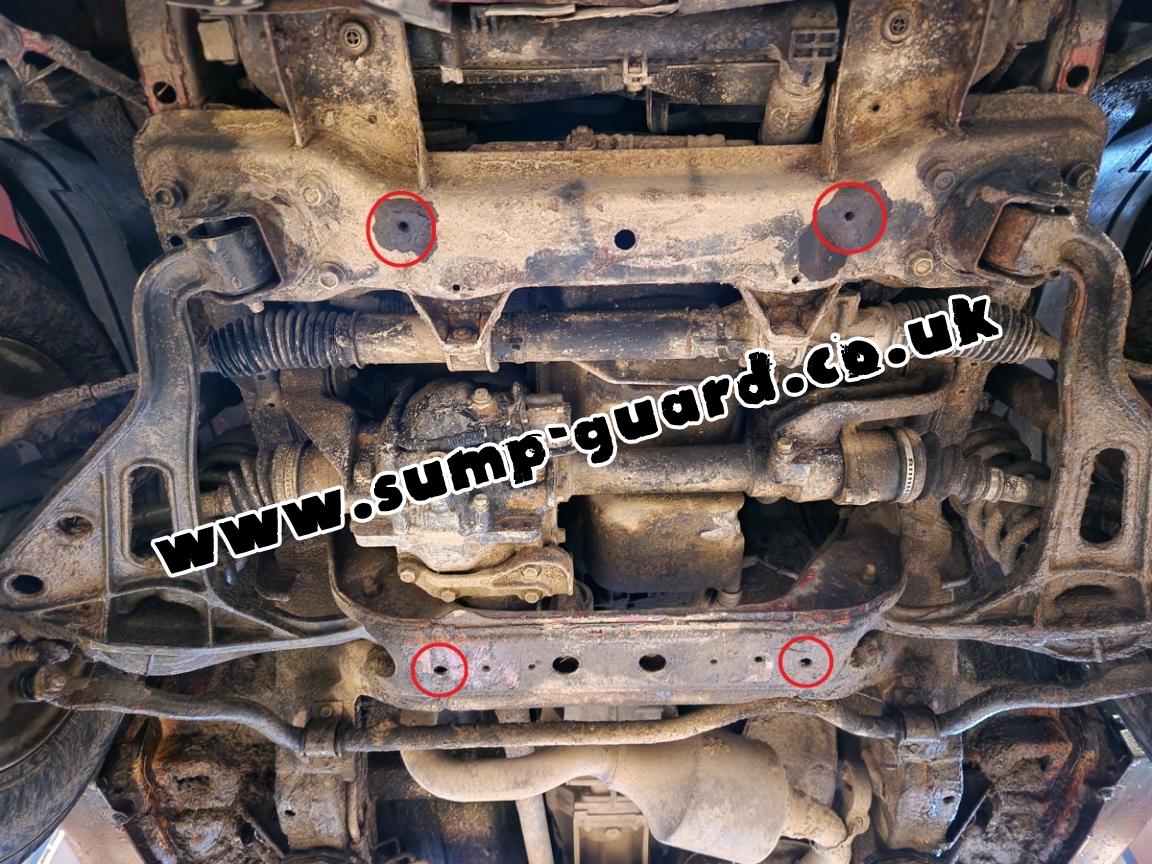

| The skid plate is installed using the vehicle’s original mounting points, so installation is straightforward and can be carried out by you or at any workshop. |
| No drilling or major modifications to the vehicle structure are required for installation. |
| No additional approval is required for installation. |
|
|
Customer feedback
Steel sump guard for Suzuki Grand Vitara
Todo correcto, y en tiempo lo único es que cuando tienes que cambiar el aceite tienes que quitarlo entero.
Steel sump guard for Suzuki Grand Vitara
Todo bien, si bien me costó entender el montaje con la pletina, debería venir explicado en el documento que lo acompaña. Lo único que mejoraría sería hacer al menos dos agujeros que coincidan con los originales, para los que no tenemos elevador sería de gran ayuda además de asegurar mejor la sujeción.
Steel sump guard for Suzuki Grand Vitara
El cubre carter encaja a la perfección y es fácil de instalar. El protector de la caja de cambios, ha costado un poco más de instalar he tenido que modificar un poco porque me toca el tubo de escape y para collar la parte trasera he tenido que hacer dos taladros para poder pasar los tornillos y poder collar el soporte. (el coche no lleva los agujeros hechos).
Steel sump guard for Suzuki Grand Vitara
Got a steel sump guard for Grand Vitara, really decent quality and excellent customer service.
Steel sump guard for Suzuki Grand Vitara
A good, well made product. The sump guard fitted perfectly but there was difficulty with the gearbox guard as it does not fit the Grand Vitara TD. With a some fettling and the assistance of a lump hammer we bent the offending wing out to make room for the exhaust pipe and then it fitted perfectly. It is a shame we had to do that as it no longer looks as it was made to, but it does work and with that modification all was well. Other than that all the holes lined and it was pretty simple to fit.
Steel sump guard for Suzuki Grand Vitara
Gute Passform Top Preis gerne Wieder
Steel sump guard for Suzuki Grand Vitara
Non facile da montare. Spero che resti attaccata x molto tempo. Senza foro x cambio olio. Ideale x fare del sano fuoristrada hard. X completare, in un secondo momento, paracambio/trasmissione e bullbar.
Steel sump guard for Suzuki Grand Vitara
Ordinate 2piastre paramotore, una dispersa, arrivata 2settimane dopo (mandato messaggi al centro assistenza nessuna risposta) e l’altra per Suzuki gran vitara, ho dovuto modificarla, nonostante il prodotto fosse specifico per il modello del veicolo
Steel sump guard for Suzuki Grand Vitara
pas du tout satisfait le matériel livré ne correspondait pas a mon véhicule il a fallu que je modifie les 2 parties livré et faire des pièces pour pouvoir arriver a les monter . Je ne recommanderais plus chez vous
Steel sump guard for Suzuki Grand Vitara
Tout c est bien passé...facile au montage...impeccable
Steel sump guard for Suzuki Grand Vitara
Attention ne convient pas pour Grand Vitara XL-7 !!! Nécessite de faire des cales pour les fixations avant et arrière ! Sinon super produit
Steel sump guard for Suzuki Grand Vitara
Très bon produit. Installé en 15 min sans aucune modification. Bon suivi au niveau de la livraison.
