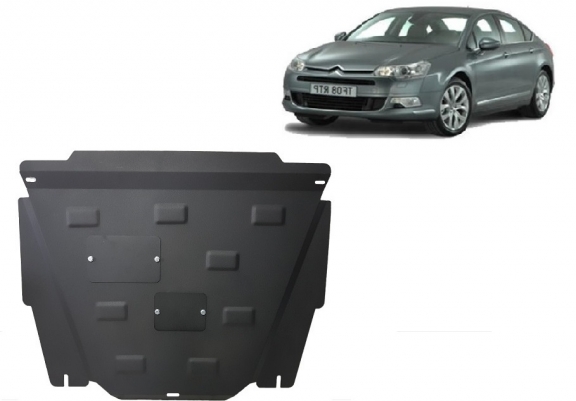

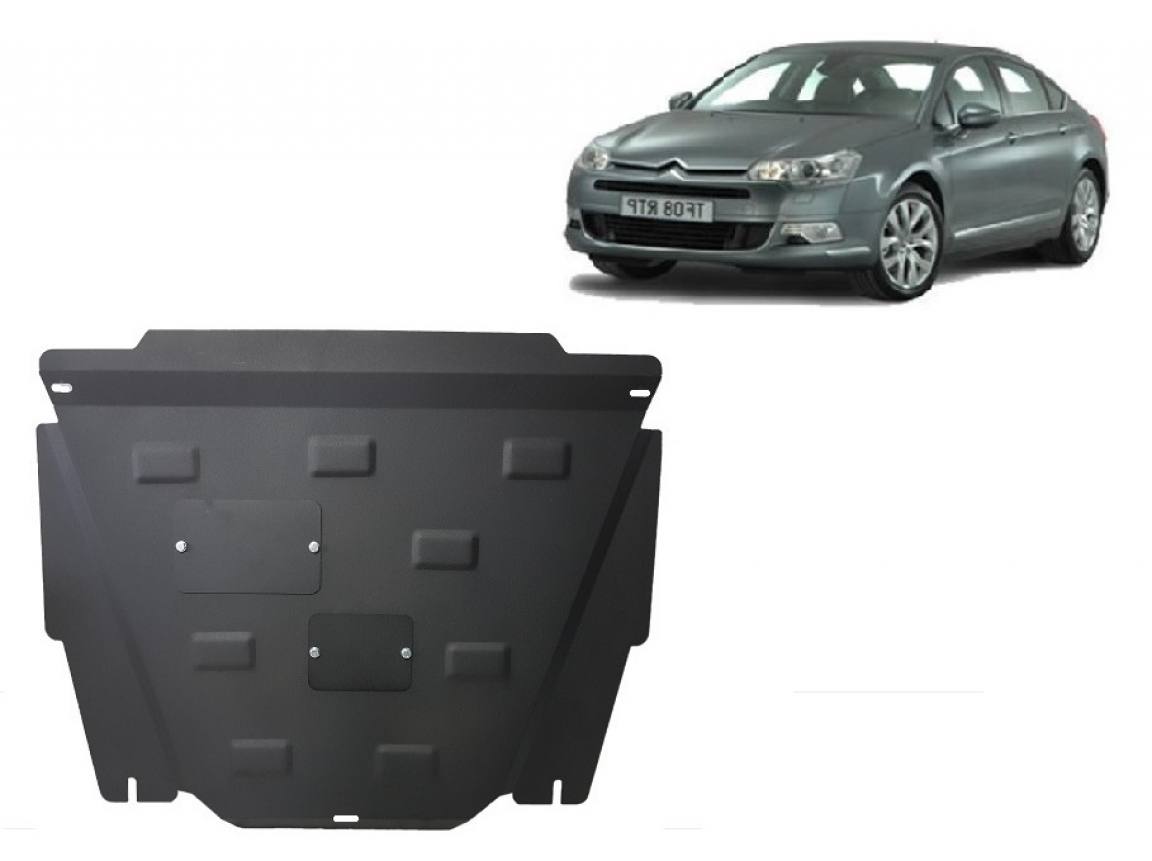

Steel sump guard for Citroen C5
Product code: 05.034
| Brand | Citroen |
| Model | Citroen C5 |
| Year | 2004 - 2008 |
| Material | Steel |
| Width | 2 mm |
| Protects | engine, gearbox |
| Engine | all |
| Weight | 11 kg |
| EAN Code: | 5941986201201 |
| Has an opening for the oil sump: Yes | |
| It has an opening for the oil sump, so it's removal won't be necessary to change the oil. | |
| Availability | In Stock |
| Manufacturer | Scut Protection S.R.L |
| No additional approval is required | |
Technical specifications: |
|
The metal skid plate is new and custom-designed for Citroen C5, compatible with all versions manufactured between 2004 and 2008. It protects the underside of the vehicle and sensitive components against impacts, stones, mud, dirt and road irregularities. The skid plate protects the following components: engine, gearbox. Includes an opening for oil changes, so the skid plate does not need to be removed during maintenance. The skid plate is made from steel sheet with a thickness of 2 mm. Includes screws, spacers and all accessories required for installation. All skid plates are powder coated for corrosion protection, providing greater resistance and durability. The skid plates feature welded reinforcements to improve resistance against external impacts. |
Advantages: |
| Resists impacts caused by stones, potholes and road irregularities. |
| Protects the underside of the vehicle against dust, mud, dirt and other external elements. |
| More resistant and durable than plastic or fibreglass protection. |
| If you are not satisfied with the product, you can return it within 60 days. |
Warranty: |
| Our company offers a 24-month warranty on its products. |
Delivery conditions |
| Our products are shipped via GLS, FEDEX, DPD or ParcelForce. |
| Shipping costs are calculated and added to your cart before purchase. |
| The estimated delivery time is 4 to 7 working days. |
Installation: |

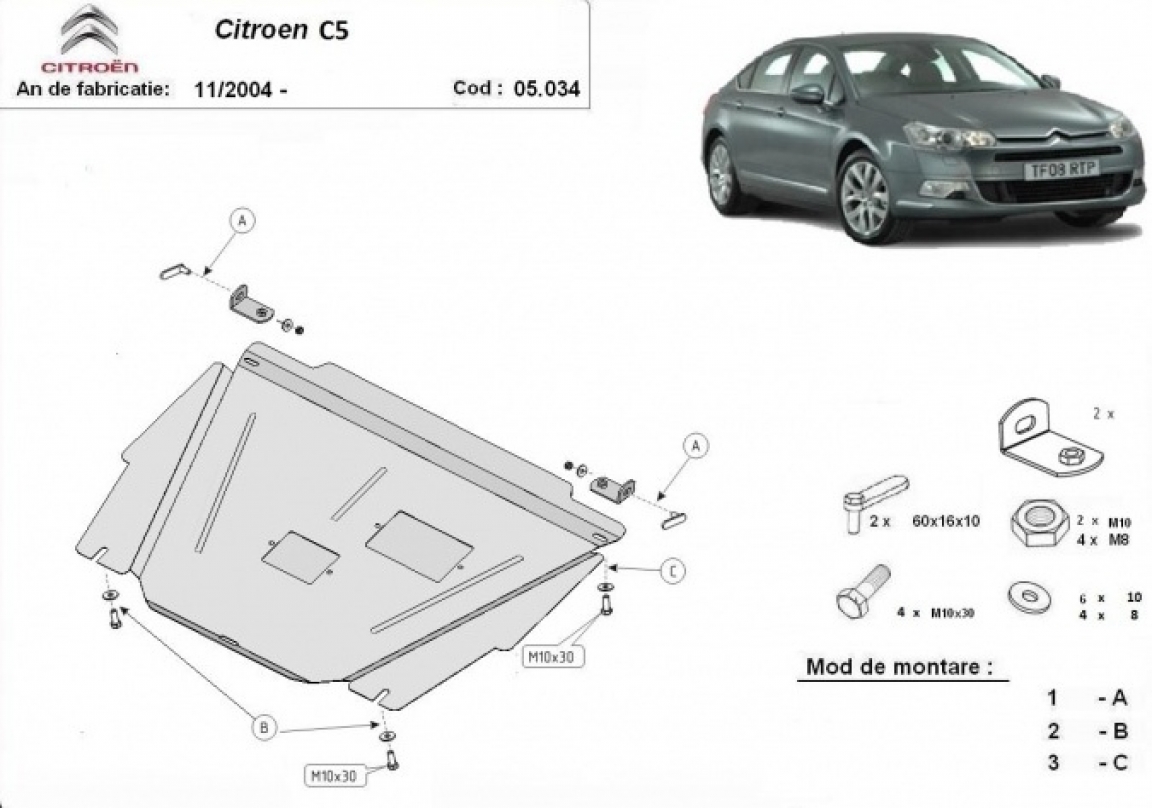

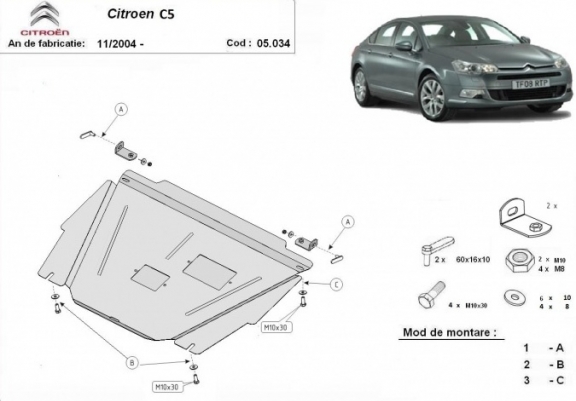

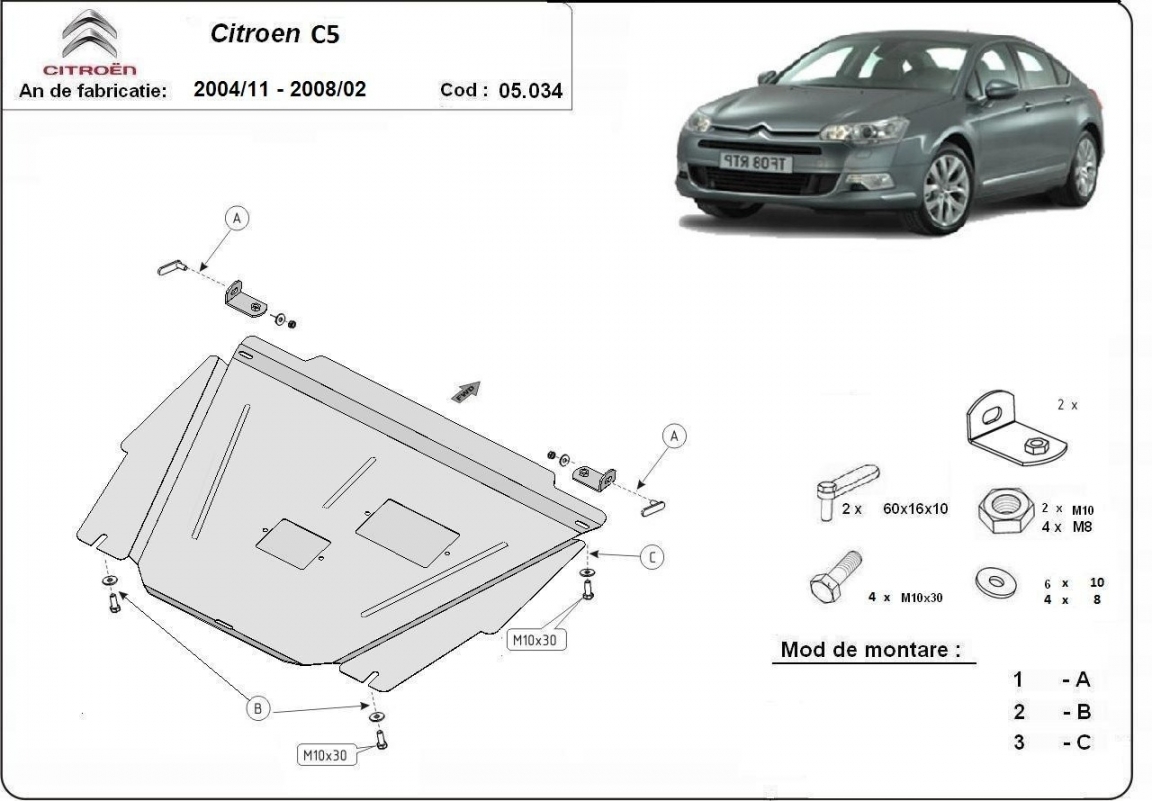

| We provide an installation guide with the skid plate showing the position and installation order of the included accessories. |
| The skid plate is installed using the vehicle’s original mounting points, so installation is straightforward and can be carried out by you or at any workshop. |
| No drilling or major modifications to the vehicle structure are required for installation. |
| No additional approval is required for installation. |
|
|
Customer feedback
Steel sump guard for Citroen C5
Compré cubrecarter para c5 II. Las aperturas para el drenaje del aceite y la valvulina no coinciden. El mio es el 2.0hdi 138cv.los anclajes traseros tampoco coinciden. Tuve que adaptar. Y los anclajes delanteros si coinciden pero hay que tener mucho cuidado porque uno de los tornillos golpea en una tuberia de aluminio del aire acondicionado y la puedes romper. La chapa si que es de calidad y robusta eso si. Tiempo de entrega 10 dias aprox.
Steel sump guard for Citroen C5
Despues de no poder instalarlo ya que los talleres estaban cerrados durante la pandemia y el confinamiento, hoy al fin he podido pedir cita para hacerlo en un taller y mira tu por donde , no coinciden las tapas del cambio de aceite ni nada esta en su sitio, me habreis enviado para otro modelo que no es el mío y os lo especifiqué adecuadamente, ahora tengo un cubre carter que no me vale para nada. MI VEHICULO ES UN CITROEN C5 DEL AÑO 2006 MODELO 2.2 HDI DIESEL DE 173 CV. .Y me habeis enviado vete tu a saber para que modelo, ya que por la parte izquierda colisiona con una tuberia del AA metalica y ni siquiera los tornillo de atras llegan. asi que a hacer la devolucion toca. El producto es de buena calidad pero no es el que me corresponde.
Steel sump guard for Citroen C5
La instalación o enganche en la delantera del cubre-cárter fue como ponían las fotos. Pero en la parte de atrás No fue nada fácil, no coincidían las cosas ni los agujeros, tuvimos que inventar y adaptar. Se echa de menos un vídeo-tutorial de instalación para cada modelo de cubre-cárter y vehículo
Steel sump guard for Citroen C5
Citroen C5 Baujahr 2004/9 Mussten das Blech an der achs - seite beidseitig ausschneiden da bei 4 Schrauben die zwei äußeren Schrauben nicht passten. Vorsicht die Schraube links vorne ist zu lang - beschädigt beim Montieren die Leitung des Klimakompressors. Nach dem montieren entstand bei 2500 U/min eine hörbare Vibration. Befestigungswinkel neu , jetzt passt alles.
Steel sump guard for Citroen C5
Thanks for the quick delivery to Bulgaria. I just wanted to share with you, that the installing process was not just bolt on. For my Audi S3 8V it appeared that we have to modify the mount as it was not possible to fit it and was touching the OEM intercooler pipe. At the end we managed to fix it, but it was a few hours work.
Steel sump guard for Citroen C5
À la dimension de ma C5 de 2008 mais, les ouvertures étant mal placées je devrai la démonter à chaque vidange. C'est assez emmerdant.
